240V outlet installation cost

A new 240 volt outlet is a new circuit, so it is priced by the hour: an electrician bills $80 to $180, and a dryer or range outlet near the panel is usually two to four hours plus the visit. The heavier wire and the double-pole breaker cost more than their 120 volt equivalents, but labor is still most of the bill.

The single thing that moves the price most is the amperage. A 30 amp dryer outlet uses cable you can bend by hand. A 50 amp outlet for a range, a welder or a car uses cable as thick as a finger, and every foot of it costs more to buy and more to pull.

What it costs

The two comparison lines bracket the job. A 240 volt outlet is more than adding a 120 volt receptacle, because nothing in the wall can be borrowed, and usually less than a full charger installation, because there is no charger to buy or mount.

Which outlet you need

The plug on the appliance decides the outlet, and the outlet decides the breaker and the wire. These are the configurations most homes see.

The number before the dash is the family. A 14 outlet carries a neutral as well as a ground, so the appliance can run 120 volt parts such as a timer, a light or a control board. A 6 outlet has no neutral, which suits a welder or a kiln that only uses 240 volts. The two are not interchangeable, and an adapter between them is not a fix.

The number after the dash is the amperage. A 30 amp plug will not fit a 50 amp outlet, by design.

Wire gauge and breaker, and why they set the price

Each outlet needs a matching double-pole breaker and copper sized for it. In typical residential cable, that works out roughly as follows.

• 20 amp, 6-20: 12 gauge copper, 20 amp double-pole breaker
• 30 amp, 14-30: 10 gauge copper, 30 amp double-pole breaker
• 40 amp range circuit: 8 gauge copper, 40 amp breaker
• 50 amp, 14-50 or 6-50: 6 gauge copper, 50 amp breaker

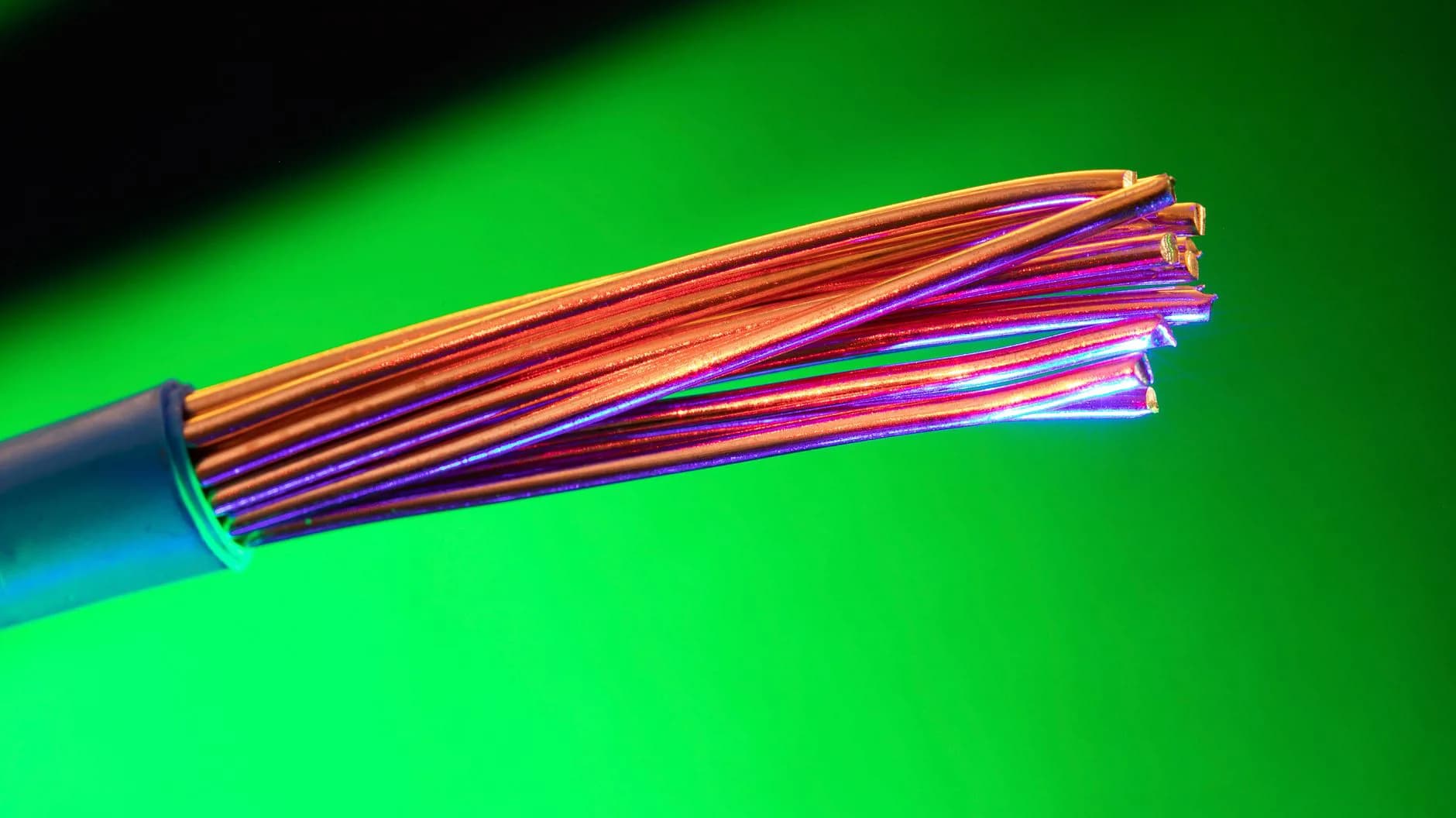

Every step up in amperage is a heavier, stiffer and more expensive cable. Six gauge cable costs several times what 10 gauge does per foot, it needs larger holes through the framing, and it is slow to pull around corners. On a long run in a finished house, the difference between a 30 amp and a 50 amp outlet can be hours, not minutes.

Longer runs sometimes call for a size heavier still to keep voltage drop in check. An electrician who upsizes the wire on a 100 foot run to the garage is not padding the quote.

Some loads also run for hours at a time. An EV charger, for example, is a continuous load, and the circuit has to be sized so the charger draws no more than about 80 percent of the breaker rating. That is why a 40 amp charger sits on a 50 amp circuit.

GFCI on a 240 volt outlet

In jurisdictions on recent code editions, GFCI protection now reaches many 240 volt outlets: those in garages, basements, laundry areas and outdoors. In practice that means a new 14-30 dryer outlet in a laundry room, or a 14-50 in a garage, may need a two-pole GFCI breaker, which costs several times a standard one.

Ask whether the quote includes it. It is the line that most often separates a cheap quote from a correct one. If the outlet is for an EV charger, the EV charger guide explains why hardwiring the charger often avoids the GFCI breaker entirely, and why that changes the math.

Old three-prong dryer and range outlets

Plenty of houses still have a 10-30 or 10-50 outlet: three slots, no ground. Code now requires four-wire circuits for new installations, but an existing three-wire circuit can generally stay.

That leaves two honest options when a new dryer or range arrives with a four-prong cord:

Swap the cord, not the outlet. Most dryers and ranges are sold without a cord, and a three-prong cord can be fitted to match the existing outlet, with the bonding strap set accordingly. This is a short job and often costs nothing beyond the cord.

Run a new four-wire circuit. If the old cable has no ground, a 14-30 or 14-50 outlet cannot simply be swapped in. Fitting a four-prong outlet on three-wire cable, with the neutral doubling as a ground, is a common and dangerous shortcut. The correct version is a new cable from the panel, priced like any new 240 volt circuit.

Panel capacity and space

A 240 volt outlet needs a double-pole breaker, which takes two slots in the panel. A panel with one slot free is, for this job, full.

Capacity is the bigger question. A 50 amp outlet does not draw 50 amps all the time, but the panel has to be able to supply it alongside everything else. On a 100 amp service with an electric range, an electric dryer and central air already connected, a 50 amp welder or charger outlet may not fit. A load calculation is what answers it.

If it does not fit, the choice is a load management device, sharing a circuit through a switching device, or a service upgrade at $1,500 to $6,000. The hot tub hookup guide covers the same capacity problem for a 50 amp outdoor load.

A worked example: a dryer outlet and a welder outlet

Two jobs in the same house, quoted separately so the effect of amperage and route is clear. The panel is in an unfinished basement with four free slots, and a load calculation shows room for both.

A 14-30 outlet for a new electric dryer, 15 feet from the panel in the basement:

• Call-out fee: $100 to $250
• Labor: 2 to 4 hours × $80 to $180 per hour = $160 to $720
• Total: $260 to $970

A 6-50 outlet for a welder in the attached garage, 60 feet away through a finished family room ceiling:

• Call-out fee: $100 to $250
• Labor: 4 to 7 hours × $80 to $180 per hour = $320 to $1,260
• Total: $420 to $1,510

Materials are on top of both and are not small on the second job: 60 feet of 6 gauge copper and a 50 amp GFCI breaker cost far more than 15 feet of 10 gauge and a standard 30 amp breaker. Booking both outlets on one visit saves one call-out fee and part of the panel time, which brings the combined figure below the sum of $260 to $970 and $420 to $1,510.

Frequently asked questions

How much does it cost to install a NEMA 14-50 outlet in a garage?

It is billed at $80 to $180 an hour plus the visit, and a garage on the same wall as the panel is about half a day. Distance, finished walls and whether a two-pole GFCI breaker is required are what push it up.

Can I use a 14-50 outlet for a welder that has a 6-50 plug?

Not with the plug as it is. The usual fix is to install the outlet the welder needs, or to have a qualified person fit the welder with the matching cord. Homemade adapters between the two families are a common cause of shocks and melted plugs.

Can I convert a dryer outlet to charge an electric car?

A 30 amp dryer circuit can supply a charger set to 24 amps, and switching devices exist that let the dryer and the charger share a circuit safely. Moving the car to the laundry room is rarely practical, so a garage outlet or a hardwired charger is usually the real answer.

Why does a 50 amp outlet cost so much more than a 30 amp one?

The cable is heavier and more expensive per foot, it is slower to pull, and the breaker costs more. On a short run the difference is modest. On a long run through finished space it is often hours of labor.
